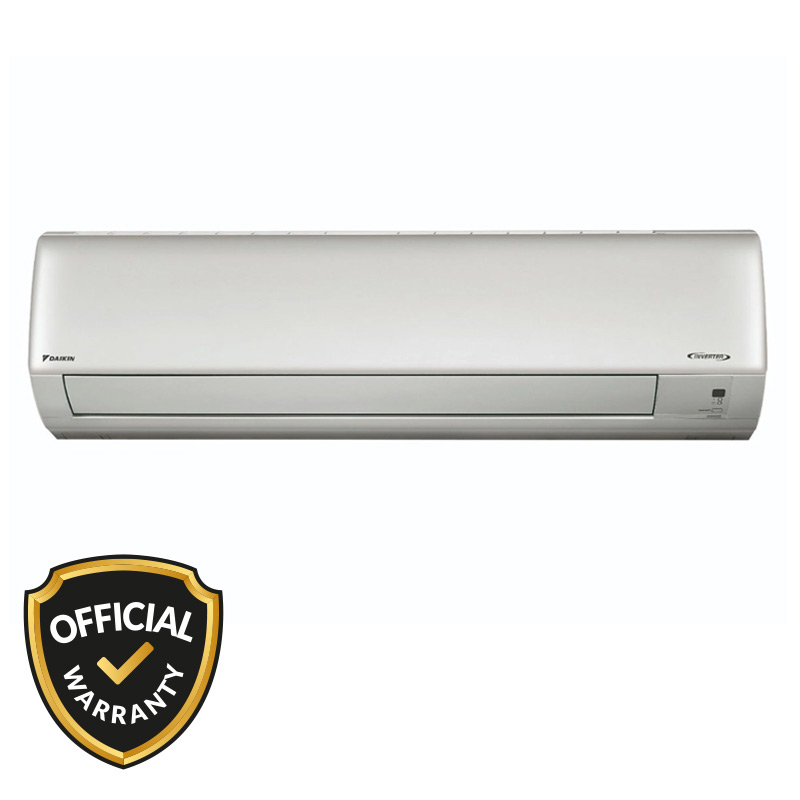

Daikin 1 Ton Inverter Split Type Air Conditioner (FTKL12TV16WD)

Description

Daikin 1 Ton Inverter Split Type Air Conditioner (FTKL12TV16WD)
General
SKU DFTKL12TV16WDDKO
Brand Daikin
Warranty Information (Official) 5 years compressor, 1 year spare parts & free service warranty
Cooling Specifications
Cooling Capacity 3.5 kW (Min 1.75 ~ Max 3.5) | 12,000 BTU/h (Min 5,970 ~ Max 12,000)
Cooling Coverage Area 120 Square Feet | Height – 10 feet (Except Top Floor)
Cooling Modes Power Chill Operation, Econo Mode, Good Sleep Off Timer
Airflow Volume 13.4 m³/min | 473 CFM (Cubic Feet per Minute)
Airflow Direction Control Vertical Auto Swing (Up & Down) | Horizontal Auto Swing (Left & Right)
Temperature Range 19.4°C to 50°C (Outdoor Temperature)
Cooling Speed Levels 40 / 36 / 32 / 29 / 26 dBA
Energy Efficiency
Power Consumption 1110W
Voltage/Frequency 230V, 50Hz, Single Phase | Operating Voltage Range: 160V ~ 265V
Current (Amps) 15A
Power Input 1110W
Power Saving Features Econo Mode, PAM Control, Good Sleep Off Timer, Inverter Technology
Compressor and Refrigerant
Refrigerant Charge 0.56 kg of R32 refrigerant
Piping Elevation 15 meters
Piping Length 20 meters
Refrigerant Type R32
Build and Design
Mounting Type Wall-Mounted (Indoor Unit)
Remote Control Yes
Indoor Unit Dimensions 298 mm (H) x 800 mm (W) x 229 mm (D)
Outdoor Unit Weight 33 kg
Indoor Unit Weight 14 kg
Outdoor Unit Dimensions 550 mm (H) x 765 mm (W) x 285 mm (D)
Smart and Convenience Features
Quiet Operation Mode Yes
Noise Levels (Outdoor) 51 dBA
Noise Levels (Indoor) 40 / 36 / 32 / 29 / 26 dBA (High→Low)
Timer Good Sleep Off Timer
Sleep Mode Yes
Installation and Accessories
Included Accessories Indoor Unit, Outdoor Unit, Remote Control with Backlight, User Manual & Warranty Card, Standard Installation Kit, Connecting Wires (Limited Length)
Installation Kit Length Piping Length (Max Supported): 20 meters
Description
Daikin 1 Ton Inverter Split Type Air Conditioner (FTKL12TV16WD) Features & Specifications

Key Features:
Power Chill Operation
Coanda Airflow
Econo Mode
Indoor Unit Quite Operation
Good Sleep Off Timer
PAM Control
Vertical Auto Swing (Up & Down)
Horizontal Auto Swing (Left & Right)
Remote Control with Back Light
Specifications:
Cooling Performance:
Cooling Capacity (kW): 3.5 (Min 1.75 ~ Max 3.5)
Cooling Capacity (BTU/h): 12,000 (Min 5,970 ~ Max 12,000)
Power Consumption (W): 1110 (Min 468 ~ Max 1110)
EER (Energy Efficiency Ratio): 3.15
Power:
Power Supply: 1 Phase, 50Hz, 230V (Range: 220–240V)
Voltage Operating Range: 160V ~ 265V
Power Supply Intake: Outdoor Unit
Breaker Size: 15A
Airflow & Noise Levels:
Airflow Rate (m³/min): 13.4
Airflow Rate (CFM): 473
Indoor Noise Level (dBA): 40/36/32/29/26
Outdoor Noise Level (dBA): 51
Refrigerant & Piping:
Refrigerant Type: R32 (Eco-friendly & efficient) | 0.56kg
Piping Length (Max): 20m
Height Difference: 15m
Pipe Size (Gas/Liquid): Φ9.5/6.4mm
Operating Range:
Cooling Temperature Range: 19.4°C to 50°C (Outdoor)
