Description

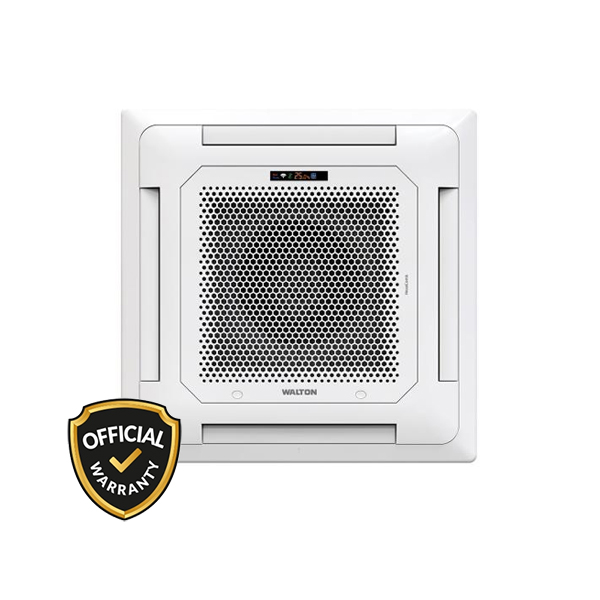

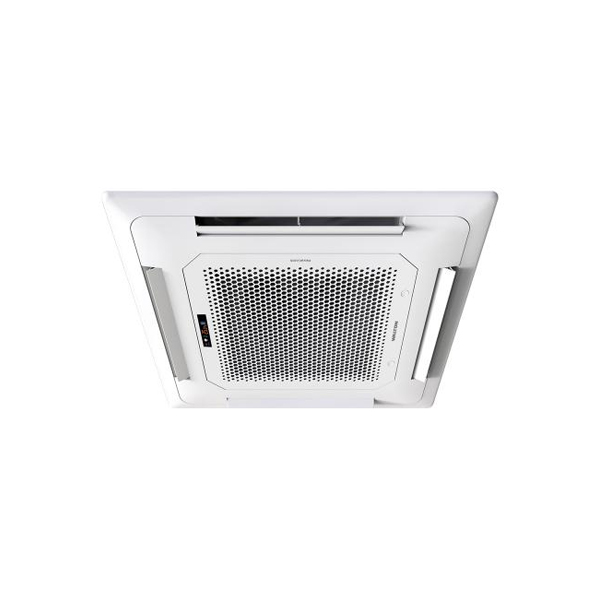

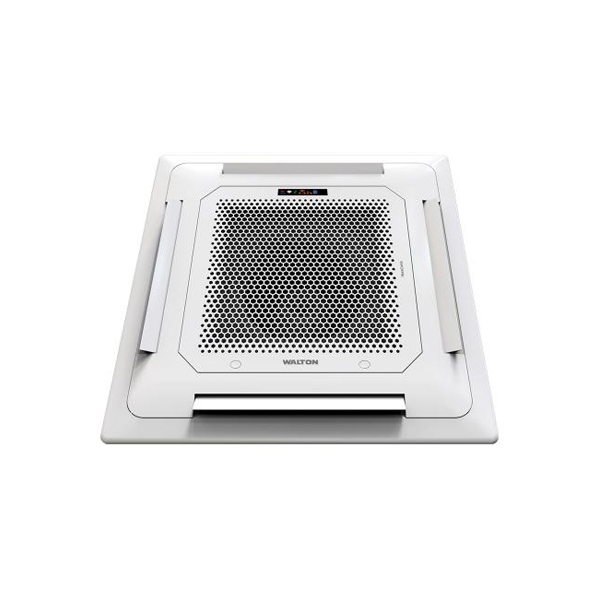

Walton 5 Ton Cassette Air Conditioner
General
SKU WCIHEXACOMB60ZWLT
Brand Walton
Warranty Information (Official) 5 Years Compressor, 2 Years Spare Parts & 1 Year After Sales Service Warranty
Cooling Specifications
Capacity 5 Ton
Cooling Capacity 60000 BTU
Cooling Modes Turbo Mode (Fast Cooling), Eco Mode, Dry Mode, Fan Mode, Auto Operation, Comfort Cooling, Sleep Mode
Airflow Direction Control Auto Up & Down
Temperature Range 16°C-31°C
Cooling Speed Levels Yes (Auto, High, Medium, Low)
Energy Efficiency
Energy Star Rating EER: 3.37
Power Consumption Up to 5220W (Rated Input)
Voltage/Frequency 220V-240V ~ 50Hz
Current (Amps) Rated Current: 24A
Power Input Up to 5220W (Rated Input)
Compressor and Refrigerant
Refrigerant Charge 2.47kg
Compressor Type Rotary (Variable Speed)
Condenser Coil Material Copper Tube Condenser | Louvered Fin (Evaporator & Condenser)
Piping Length Maximum: 30 Meters
Refrigerant Type R-32
Build and Design
Display Type LED
Remote Control Via IR (Infrared Ray)
Indoor Unit Dimensions 840 x 840 x 310 [L×W×H]
Outdoor Unit Weight 90±1Kg
Indoor Unit Weight 37±1Kg
Outdoor Unit Dimensions 917 x 330 x 1260 [L×W×H]
Build Copper Tube Condenser | Louvered Fins (Evaporator & Condenser)
Smart and Convenience Features
Child Lock Yes
Timer Yes
Sleep Mode Yes
Auto-Restart Function Yes
Description
Key Features & Specifications of Walton 5 Ton Cassette Air Conditioner
Key Features:
Efficient Cooling
Energy Saving
Elegant Design
High Airflow
Four Way Air Out with Auto Swing
Easy Cleaning System
Specifications:
Basic:
Function: Cooling
BTU/hr: 60000
Rated Voltage: 220V-240V ~ 50Hz
Rated Input Power (W): Up to 5220W
Rated Current (A): Up to 24A
Cooling Capacity (W): Up to 17584W
EER: 3.37
Cooling Features:
Compressor Type: Rotary (Variable Speed)
Refrigerant Type: R-32
Refrigerant Amount (kg): 2.47Kg
Operating Range (Ambient Temperature): 21˚C to 43˚C (Standard) | 55˚C (Maximum)
Heat Exchanger Type: Copper Tube (Evaporator) | Copper Channel (Condenser)
Heat Exchanger Fin Type: Louvered Fin (Evaporator) | Louvered Fin (Condenser)
Connecting Pipe Size: 15.88×0.8 (Vapor Line) | 9.52×0.7 (Liquid Line)
Maximum Pipe Length: 30m
Operations:
Display Type: 7 Segment LED
Speed Setting: Yes (Auto, High, Medium, Low)
Turbo Mode (Faster Cooling): Yes
Eco Mode: Yes
Auto Operation: Yes
Dry Mode: Yes
Fan Mode: Yes
Auto Restart: Yes
Comfort Cooling: Yes
Timer: Yes
Sleep: Yes
Remote & Air Deflection:
Display Type: LCD
Operation/Control: Via IR (Infrared Ray)
Display Back Light: Yes
Child Lock: Yes
Temperature Range: Yes (16℃ to 31℃)
Temperature Unit Change: Yes (Degree Celsius to Fahrenheit)
Auto Up-Down Swing: Yes
